The Coleman Mach 3 Plus RV Rooftop Air Conditioner features a large evaporator and condenser coils with raised lance fins to help dissipate heat, has a solid 13,500 nominal BTU cooling capacity and delivers 320 CFM (cubic feet per minute) airflow. All-copper tubing and gas-flux brazed joints ensure durability and long life for your RV air conditioner.
- Great for use in:
- Truck campers
- Fifth wheels
- Travel trailers
- Fold-down trailers
- Class A motorhomes
- Class B motorhomes
- Class C motorhomes
- Horse trailers that have suspensions and roof support equivalent to an RV
- Motor is mounted directly to the bulkhead to prevent distortion of the angle of the blower wheel
- Ensures a free turning action
- Fixes the motor’s position in relation to the blower
- Features a sealed shaft to protect against damage from the elements
- Designed to easily start under high temperatures and humidity conditions
- Plastic drain pan eliminates corrosion
- Corrosion-resistant, stainless steel truss head screws secure the shroud
- All-copper tubing and gas-flux brazed joints ensure long life
- Charged with eco-friendly R-410A refrigerant
- Medium profile unit
- CoolingCapacity: 13,500 BTU
- Electric Heat Element Capacity: 5,600 BTU

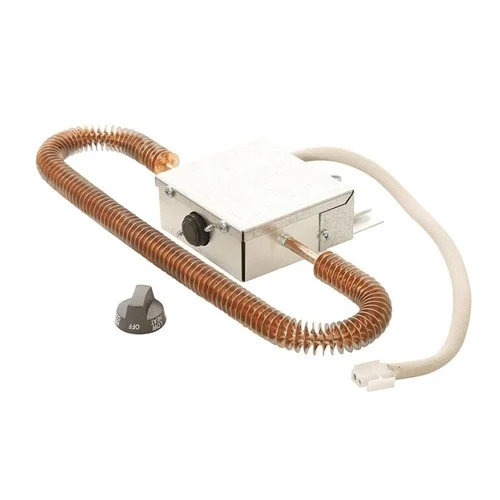

- Heater assembly is sold separately, see part 9233A4551
- Electrical Rating: 115 VAC, 60HZ
- Cooling Amps-High: 13.1
- Running Watts Standard: 1400
- Running Watts Desert: 1695
- Running Watts Heat Strip: 1800
- Locked Rotor Amps: 50.5
- 320 Cubic feet per minute
- Fits standard 14″ x 14″ vent opening
- Dimensions:
- Exterior Shroud: 38″ L x 26.1″ W x 13.8″ H
- Interior Shroud: 22.1″ L x 21″ W x 2.2″ H
- Air Conditioner Weight: 79.5 lbs
- Color: Black
- Limited 2 year manufacturer warranty
NOTE: Requires a Ceiling Assembly (sold separately) if switching brands or for first time installations. Important Shipping Info: If you are shipping to a residence and or need a lift gate (help getting product off the truck), please let the carrier know when they call to setup the delivery date. This Product Ships by Ground Only.
